3DXFS10

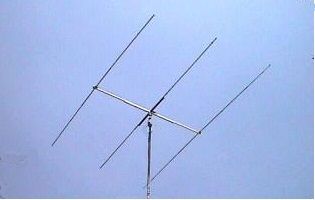

FULL SIZE DIRECTIONAL ANTENNA 3 ELEMENTS FOR 10M


Description:

The 3DXFS10 is a full size 3-element 10m directional antenna that covers the 28,000 to 28,900 khz HF spectrum.
The power input limit is 2000w pep.

Technical specifications
MODEL3DXFS10
BAND10 M
GAIN8,28 DBI
F/B53,29 DB
2:1 BANDWIDTH+500 KHZ
MAX. INPUT PWR2000w PEP
BOOM3,80M
> ELEMENT5,21M
TURNING RADIUS3,30M
MAST DIAMETER1 1/4" TO 2"
WIND-LOAD AREA0,45M²
WEIGHT8 KG
Downloads
3DXFS10- FE.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
