4DXFS06

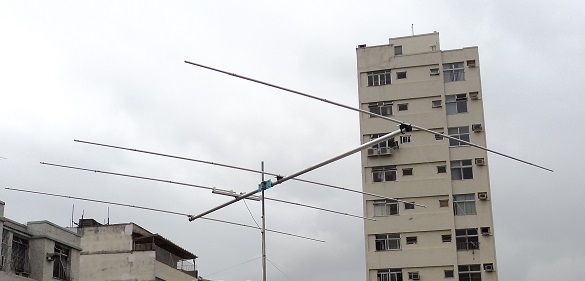

FULL SIZE DIRECTIONAL ANTENNA 4 ELEMENTS FOR 6M


Description:

The 4DXFS6 is a full size 4-element 6m directional antenna that covers the 50,000 to 54,000 khz VHF spectrum.
The power input limit is 2000w pep

Technical specifications
MODEL4DXFS6
BAND6M
GAIN8,53 DBI
F/B18,93 DB
BANDWIDTH+500 (2:1)
MAX. INPUT POWER2000w PEP
BOOM250CM
>ELEMENT299 CM
TURNING RADIUS210 CM
MAST DIAMETER1 1/4" TO 2"
WIND-LOAD AREA0,20 M²
WEIGHT5,1 KG
Downloads
4DXFS6- FEn.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
