5DXFS11

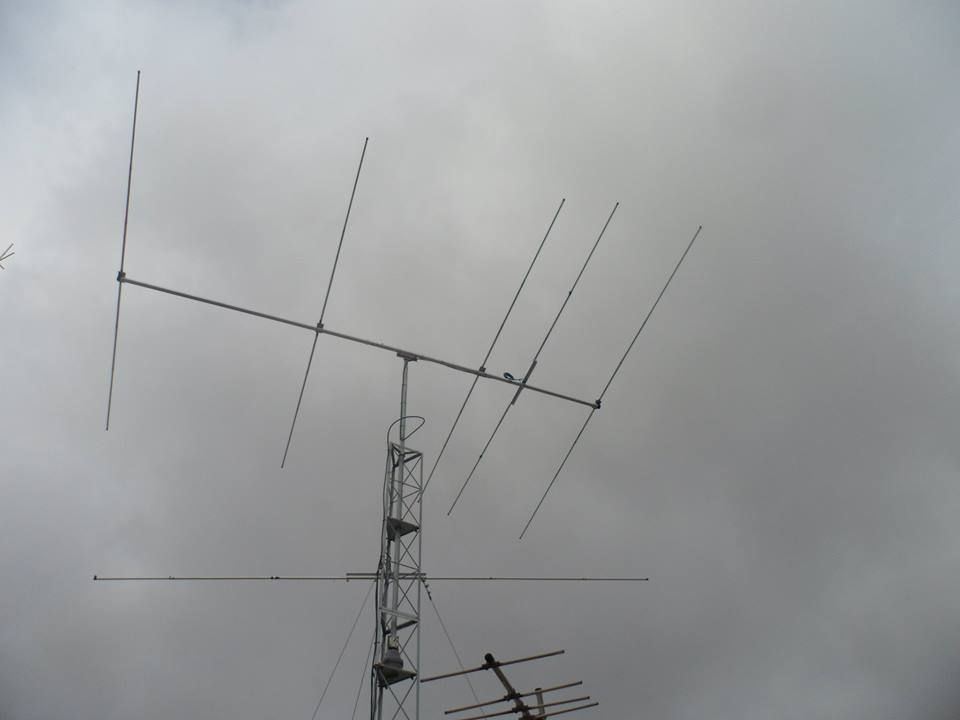

FULL SIZE DIRECTIONAL ANTENNA 5 ELEMENTS FOR 11M


Description:

The 5DXFS11 is a full size 5-element 11m directional antenna that covers the 26,900 to 27.900 khz HF spectrum.
The power input limit is 2000w pep

5DXFS Family

Technical specifications
MODEL5DXFS11
BAND11 M
GAIN9,65 DBI
F/B24 DB
BANDWIDTH+1600 KHZ
MAX. INPUT POWER2000 W PEP
BOOM6 M
> ELEMENT5,59M
TURNING RADIUS4,40M
MAST DIAMETER1 1/4" TO 2"
WIND-LOAD AREA0,65 M²
WEIGHT12 KG
Downloads
5DXFS11-2- FEn.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
