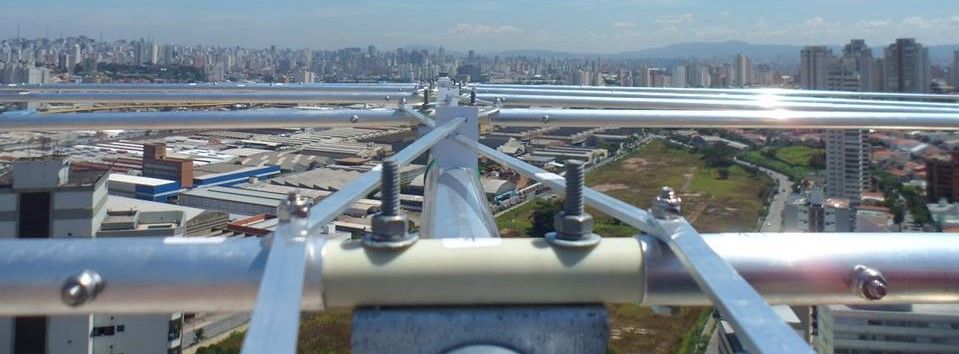

Log  isolador e alimentador 1.jpg

ALP8

LOG-PERIODIC ANTENNA - 8 ELEMENTS


Description:

DIRECTIONAL LOG-PERIODIC ANTENNA WITH 8 ELEMENTS, BROADBAND FROM 10 TO 20M.

COVERS THE BANDS OF 10, 11, 12, 15, 17 AND 20M.

MAXIMUM POWER 2000 W PEP OR 700 W CONTINUOUS.

ALP Family

    Technical specifications
    MODELALP8
    BAND10-11-12-15-17-20M
    GAIN8,55 DBI
    FRONT/BACK15-20 DB
    MAX. POWER2000W PEP / 700 W CONTINUOUS
    > ELEMENT11,58M
    BOOM DIAMETER2" (50MM)
    BOOM LENGHT5,50M
    TURNING RADIUS5,86M
    WEIGHT24KG
    WIND-LOAD AREA0,93 m²
    Downloads
    Manual ALP8 Assembly.pdfDownload

    Warranty

    Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

    Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
