DXFS11V

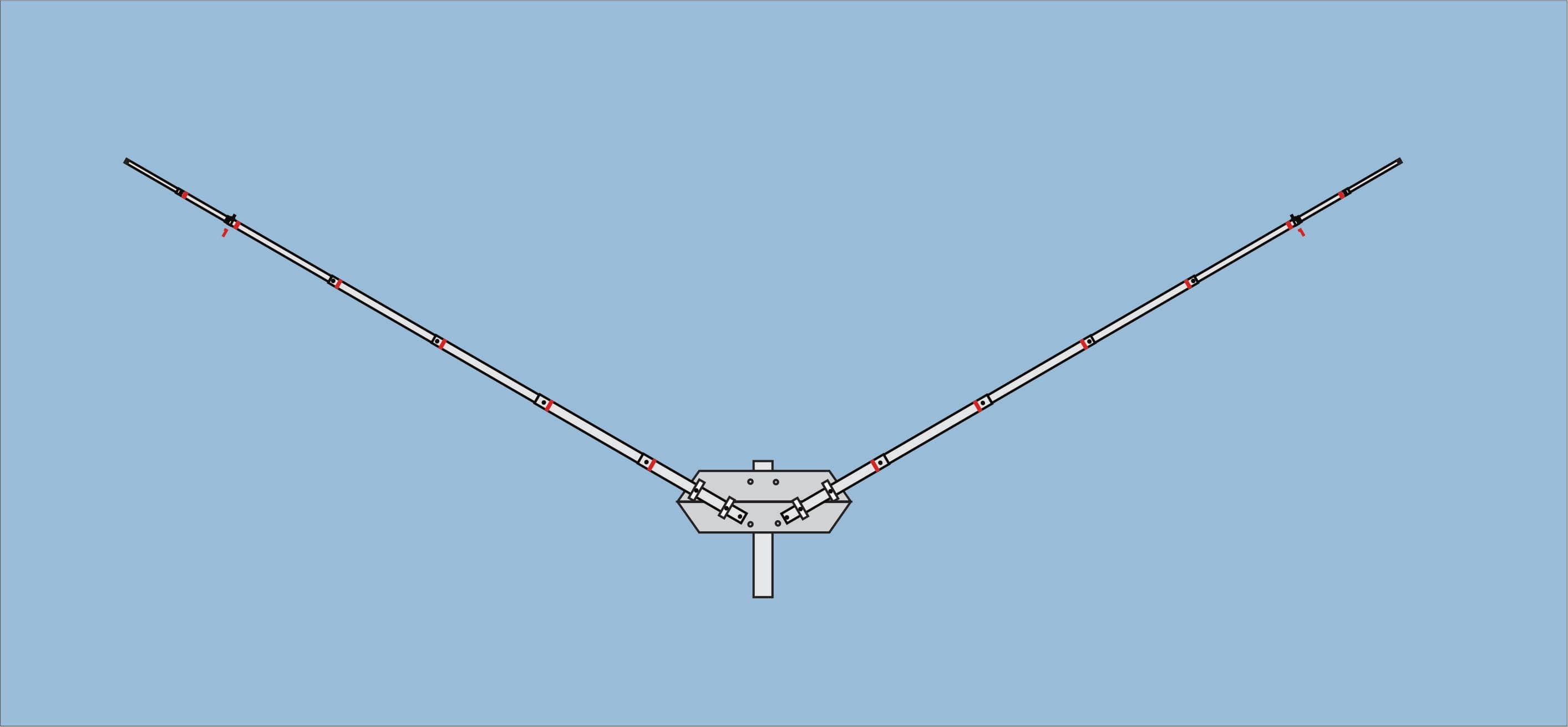

SHAPED V SHORTENED RIGID DIPOLE ANTENNA FOR 11M


Description:

The DXFS11V is a bidirectional antenna, shaped V for 11m that covers the HF spectrum between 26.9 - 27.9 MHz  (tunable). The power input limit is 2000w pep.

Technical specifications
MODELDXFS11V
BAND11M
GAIN2,4 DBI
2:1 SWR BANDWIDTH+500 khz
MAX. INPUT PWR2000W PEP
> ELEMENT/MINIMUN SPACE540CM / 475CM
TURNING RADIUS238 CM
MAST DIAMETER1 1/4" TO 2"
WIND-LOAD AREA0,091M²
WEIGHT3,030KG
Downloads
DXFS11V FE.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
