DXS36-40
DIRECTIONAL ANTENNA 3 ELEMENTS 10/15/20M WITH KIT 6M AND 40M
Description:

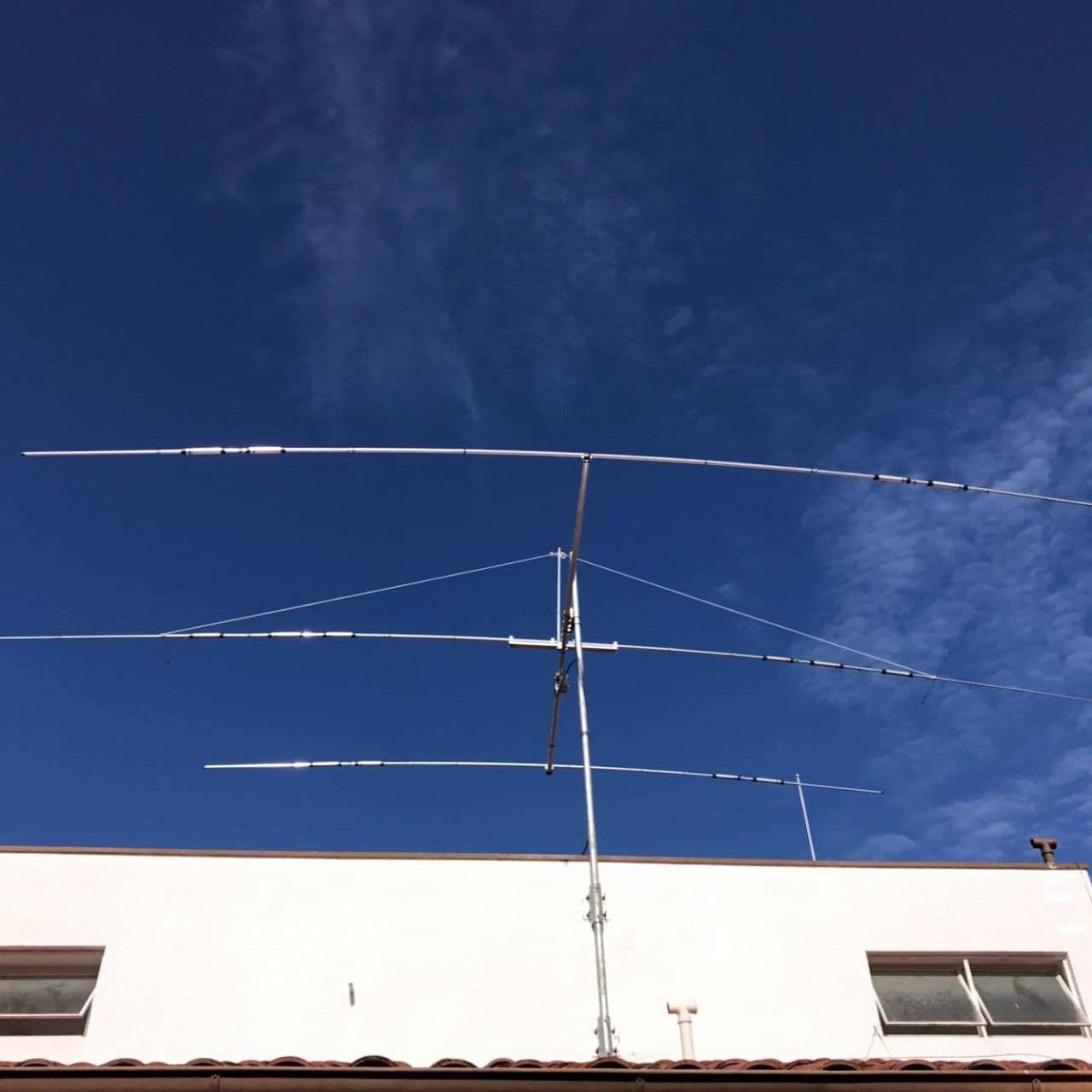

The DXS36-40 is a directional antenna with 3 elements at 10/15/20m and 1 element at 6m and 40m, covering the HF spectrum in the bands of:
- - 6m from 50,000 to 54,000 khz tunable
- 10m from 28,000 to 29,990 khz tunable.
- 15m from 21,000 to 21,500 khz tunable.
- 20m from 14,000 to 14,500 khz tunable.
- 40m from 7,000 to 7,300 khz tunable.
The power input limit is 1500w pep
The DXS36-40* model is the same as the DXS3-40 model with the addition of the 6m kit.
| Technical specifications | |
|---|---|
| Model | DXS36-40 |
| Band | 6-10/15/20-40 m |
| Gain | 8 dBi (10/15/20m) / 2,4 dBi (6/40m) |
| F/C | 10/15/20m 25 dB / 6/40m 0 dB |
| Bandwidth | + 500 (2:1) / +90 in 40m |
| Maximum Potency | 2.000 W PEP |
| Boom | 440 cm |
| > Element | 1050 cm |
| Turning radius | 580 cm |
| Mast diameter | 1.¼” A 2” |
| Wind-load area | 0,62 m2 |
| Weight | 21 Kg |
| Downloads | |
|---|---|
| DXS36-40 fe.pdf | Download |
Warranty
Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.
Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
