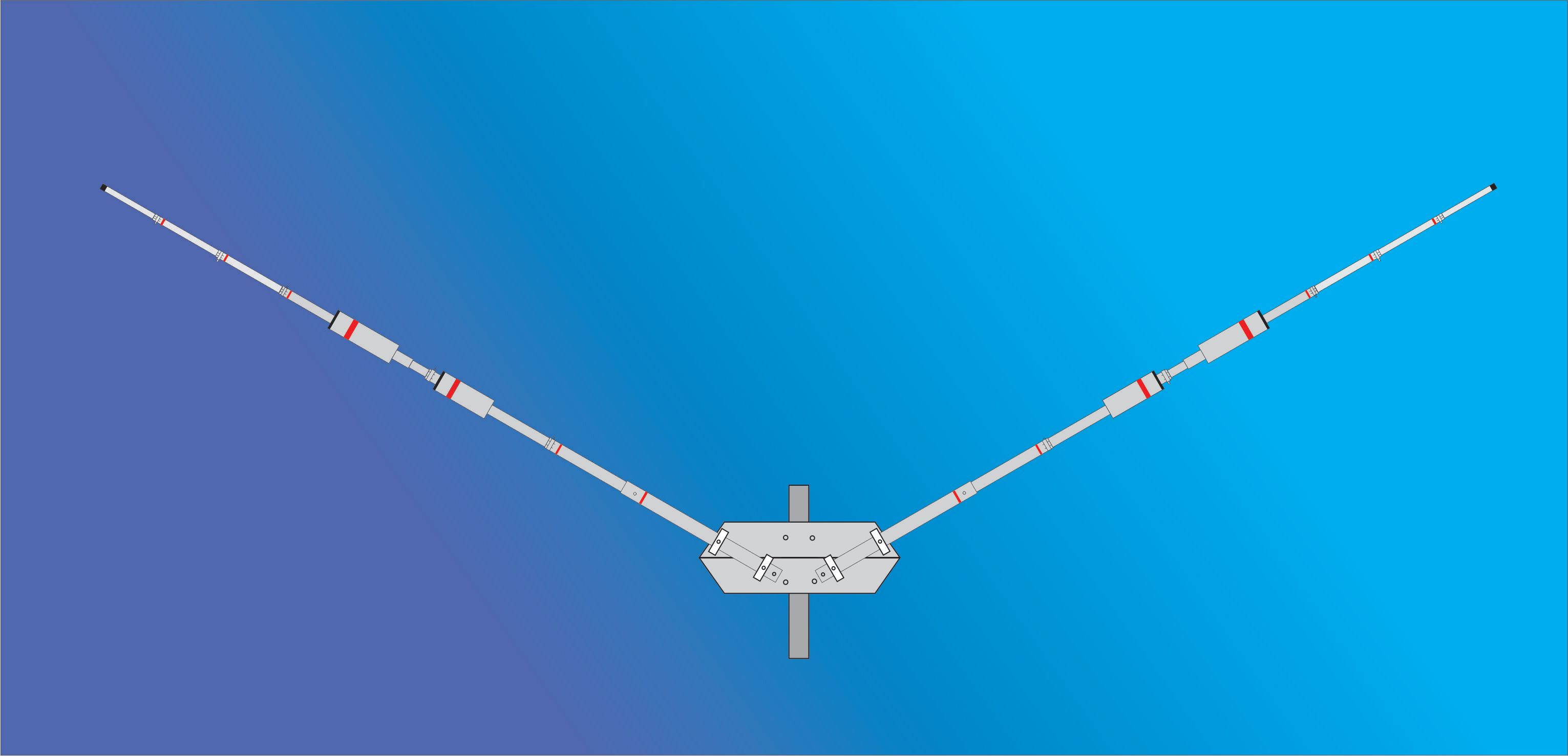

DXW1-30V IMAGEM.jpg

DXW1-30V

SHAPED V SHORTENED RIGID DIPOLE ANTENNA FOR 12/17/30M


Description:

The DXW1-30V is a bidirectional antenna, shaped V for 12/17/30m that covers the HF spectrum between

24 - 24.9 MHz  (tunable).

18 - 18.5 MHz  (tunable).

10 - 10.5 MHz  (tunable).

The power input limit is 1500w pep.



Kit K6V for 6m band is compatible.

DXW "V" Family

Technical specifications
MODELDXW1-30V
BAND12/17/30 M
GAIN2,4 DBI
2:1 SWR BANDWIDTH+ 500khz /+150khz/+80 khz
MAX. INPUT PWR1500W PEP
> ELEMENT/MINIMUN SPACE1060cm /934 cm
TURNING RADIUS468 CM
MAST DIAMETER1 1/4" TO 2"
WIND-LOAD AREA0,22 M²
WEIGHT4,3 KG
Downloads
DXW1-30V fe.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
