DXM60

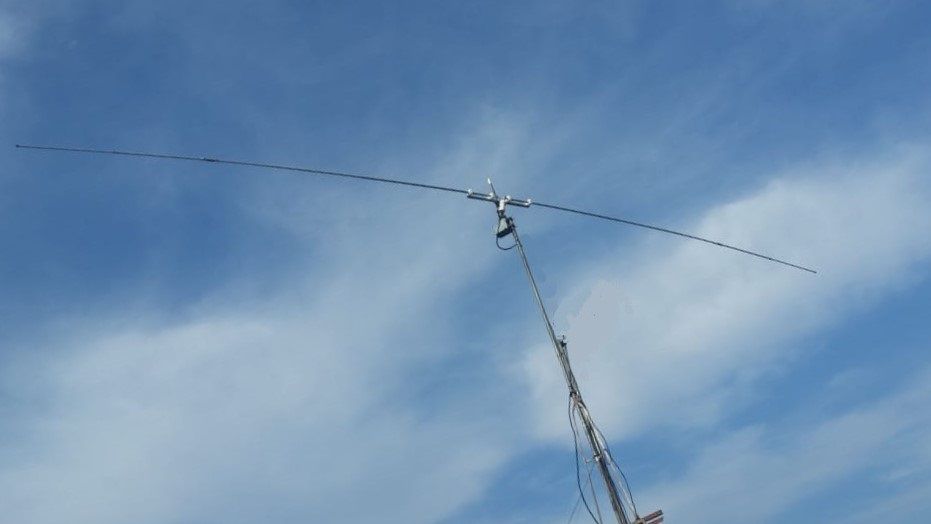

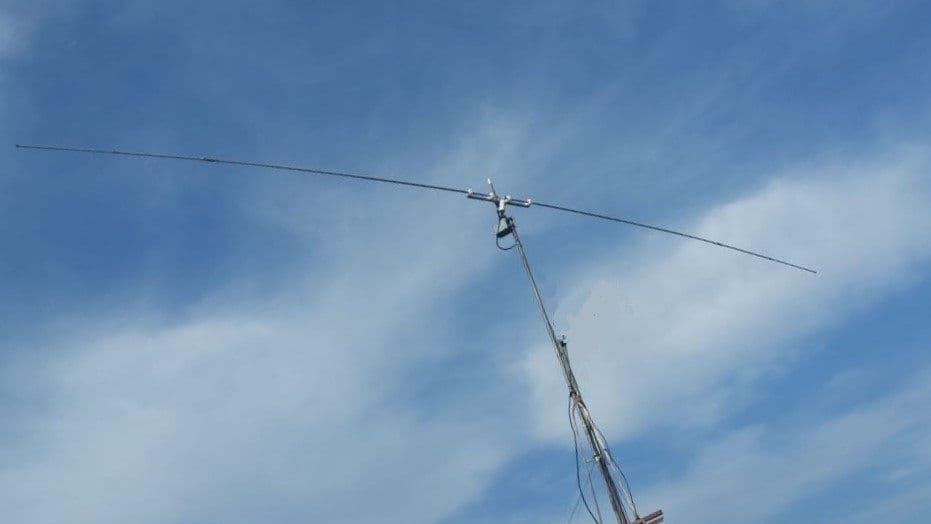

THE DXM60 IS A SHORTENED DIPOLE 60M BIDIRECTIONAL ANTENNA


Description:

The DXM60 is a shortened dipole 60m bidirectional antenna that covers the HF spectrum between 5,100 to 5,500 khz (tunable). The power input limit is  300W PEP.


Technical specifications
MODELDXM60
BAND60M
GAINNO GAIN
2:1 SWR BANDWIDTH+60 KHZ
MAX. INPUT PWR300W PEP
> ELEMENT900CM
TURNING RADIUS450 CM
MAST DIAMETER1 1/4" TO 2"
WIND-LOAD AREA0,20 M²
WEIGHT3,3 Kg
Downloads
DXM60 FE.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
