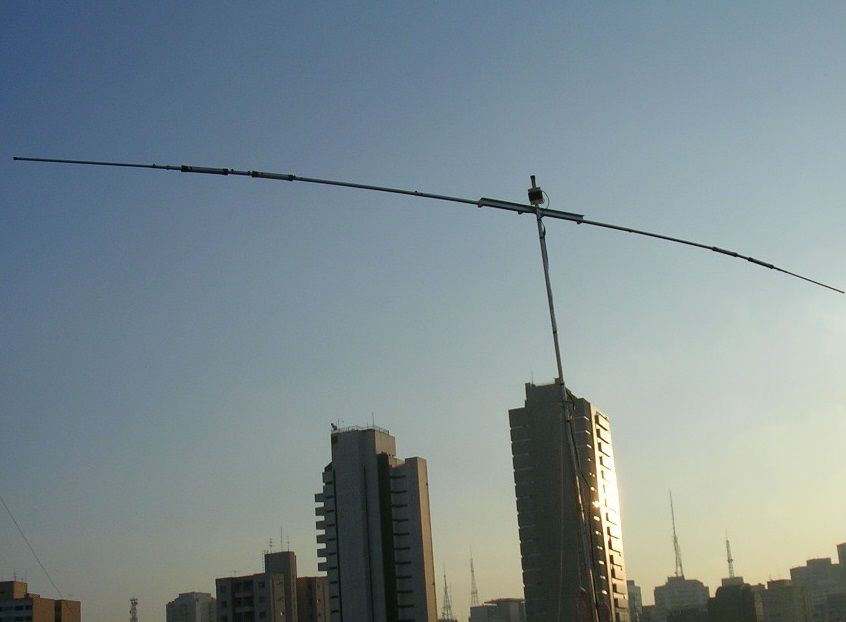

DXW1-30
ROTATING SHORT RIGID DIPOLE TRIBAND ANTENNA TO 12/17/30 M
Description:
The DXW1-30 is a dipole triband antenna that covers the HF spectrum between 24.000 – 24.990 mhz (tunable), 18.000 – 18.500 mhz (tunable) and 10.000 – 10.500 mhz (tunable). It can be used with the full power of 1500 W PEP.
Kit K6 for 6m band is compatible.
| Technical specifications | |
|---|---|
| MODEL | DXW1-30 |
| BAND | 12/17/30 M |
| GAIN | 2,4 DBI |
| 2:1 SWR BANDWIDTH | +500 khz / +150 khz / +80khz |
| MAX. INPUT PWR | 1500W PEP |
| > ELEMENT | 10,61 M |
| TURNING RADIUS | 5,31m |
| MAST DIAMETER | 1 1/4" TO 2" |
| WIND-LOAD AREA | 0,22 M² |
| WEIGTH | 4,3 KG |
| Downloads | |
|---|---|
| DXW1-30 FE 01.pdf | Download |
Warranty
Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.
Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
