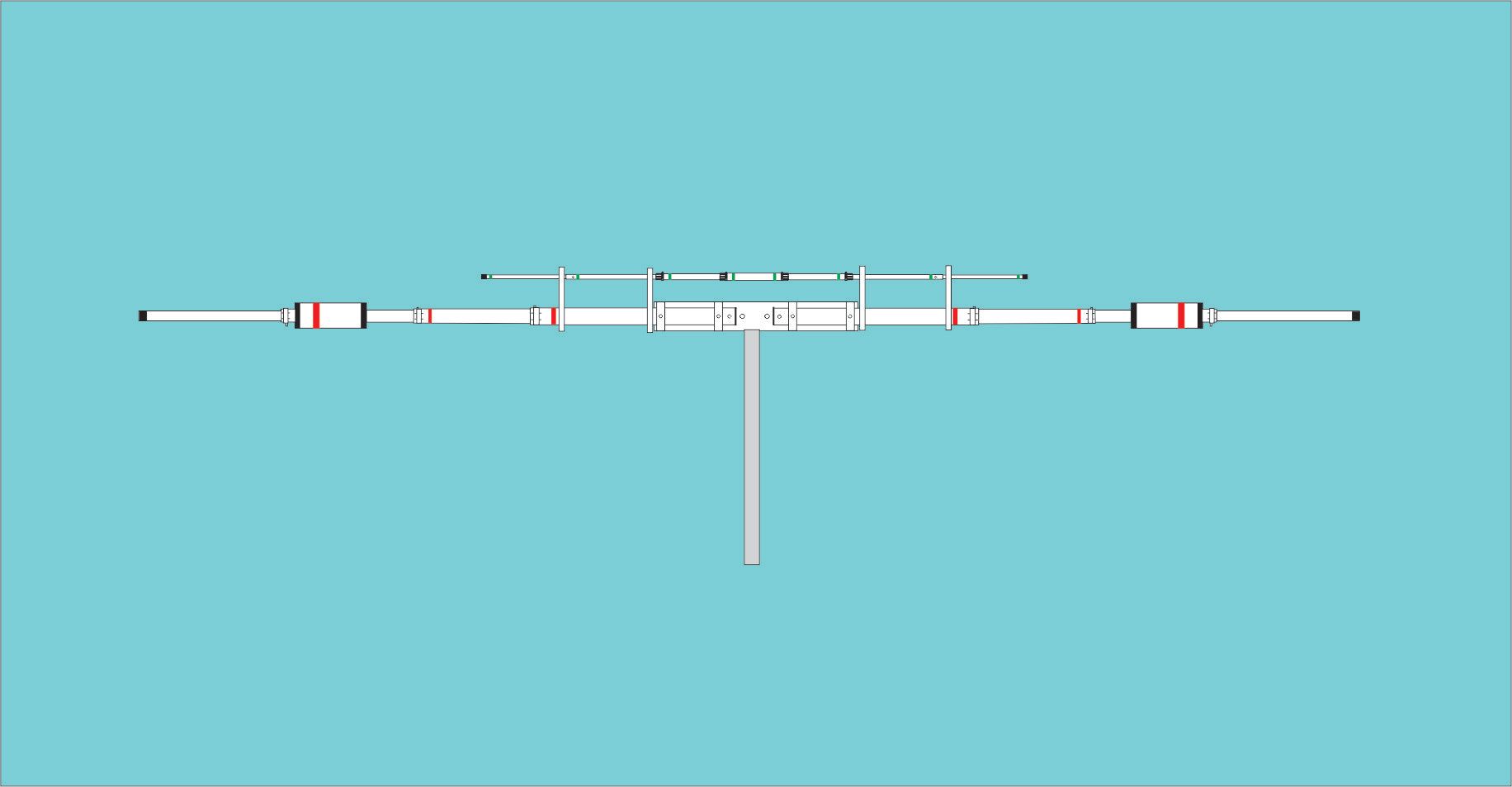

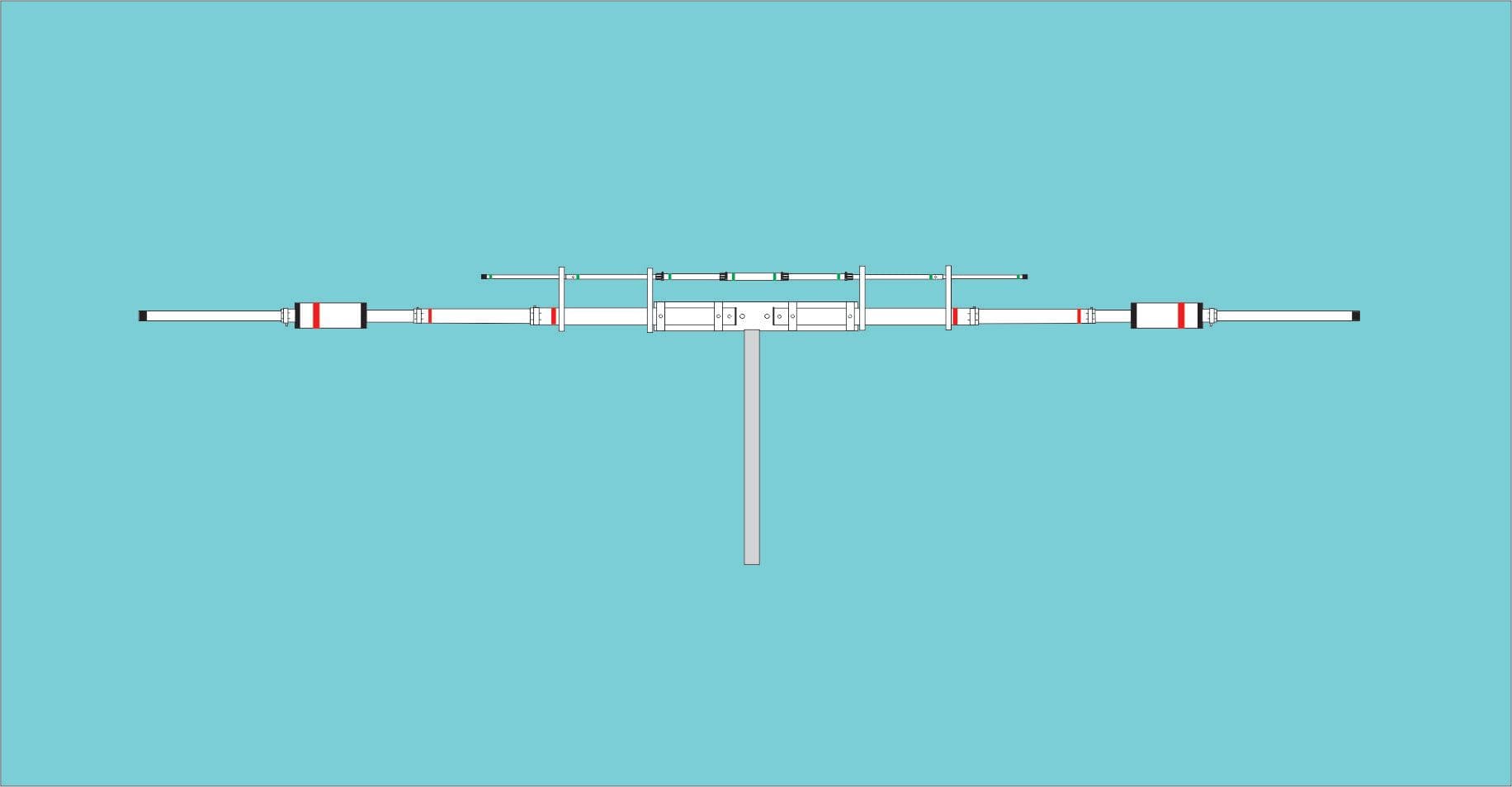

DXW16

ROTATING SHORT RIGID DIPOLE DUAL BAND ANTENNA TO 6/12/17 M


Description:

The DXW16 is a dipole Triband antenna that covers the HF spectrum between:



50.000 - 54.000 mhz (tunable)

24.000 – 24.990 mhz (tunable)

18.000 – 18.500 mhz (tunable)



It can be used with the full power of 1500 W PEP.

Technical specifications
MODELDXW16
BAND6/12/17M
GAIN2,4 DBi
2:1 SWR BANDWIDTH+500 khz
MAX. INPUT PWR1500W PEP
> ELEMENT6,60 M
TURNING RADIUS3,30 M
MAST DIAMETER1 1/4" TO 2"
WIND-LOAD AREA0,19 M²
WEIGHT3,9 KG
Downloads
DXW16 FE 01.pdfDownload
DXW16 FE.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
