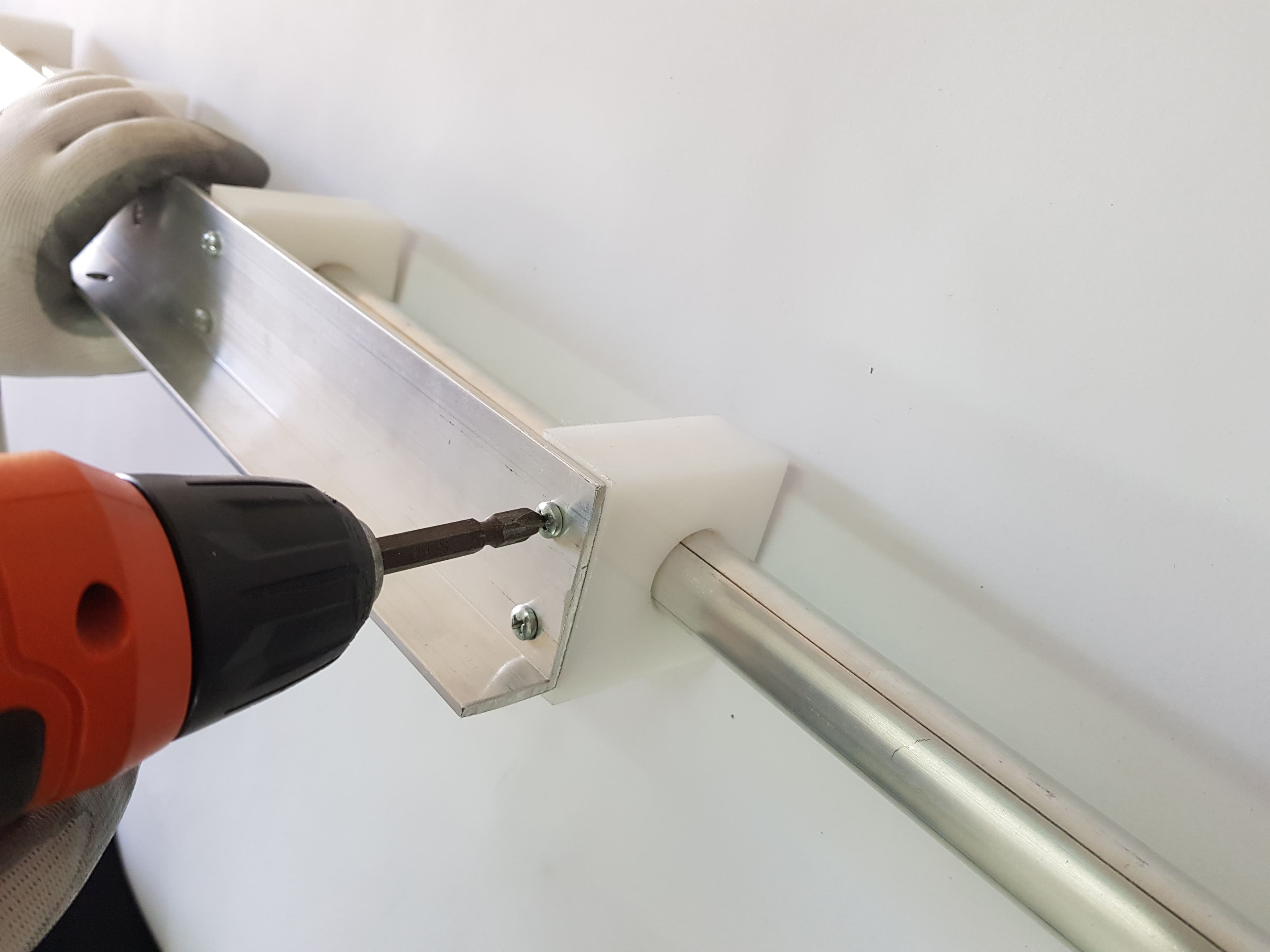

fix isolador no L.jpg
DISTANCIA ELEMENTOS CENTRAIS.JPG
instalacao do grampo v.jpeg
FIXACAO NO MASTRO FRENTE.JPG
fixacao no mastro COSTAS.jpeg

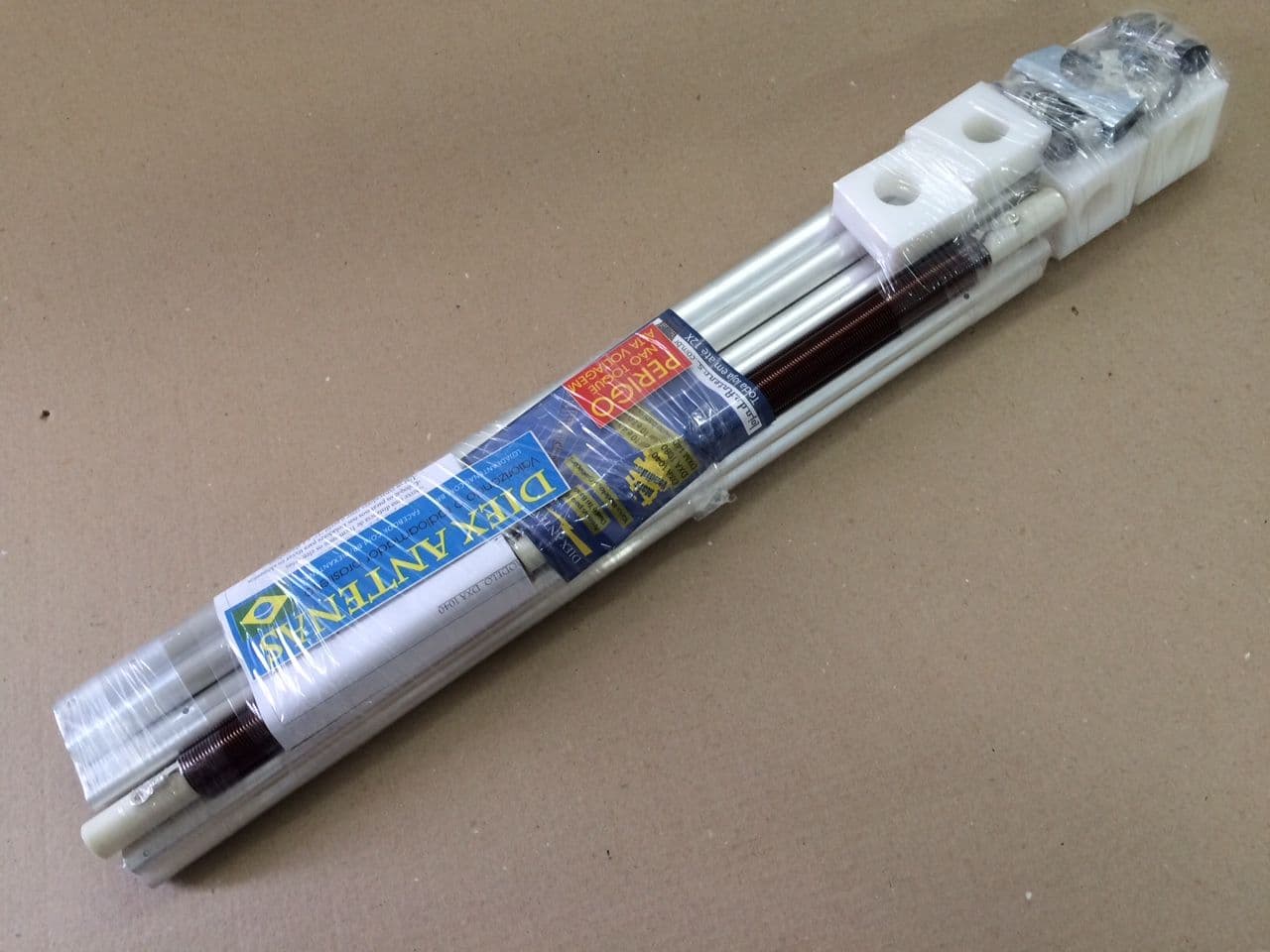

DXA1040

SHORTENED RIGID DIPOLE ANTENNA FOR 10 AND 40M


Description:

The DXA1040 is a bidirectional antenna that covers the HF spectrum between 28 - 29.8 MHz and 7 – 7.5 MHZ (tunable). It can be used with the full legal power of 100W continuously or 300W PEP.

Kit K6 for 6m band is compatible.



Technical specifications
MODELDXA1040
BAND10 and 40m
GAIN2 DBI / 0 DBI
2:1 SWR BANDWIDTH+ 500khz (2:1)/+70khz (2:1)
MAX. INPUT PWR300 W PEP
> ELEMENT800 cm
TURNING RADIUS400 cm
MAST< 50MM
WIND LOAD AREA0,12 m2
WEIGTH3,5 Kg
Downloads
DXA1040 ENG.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
