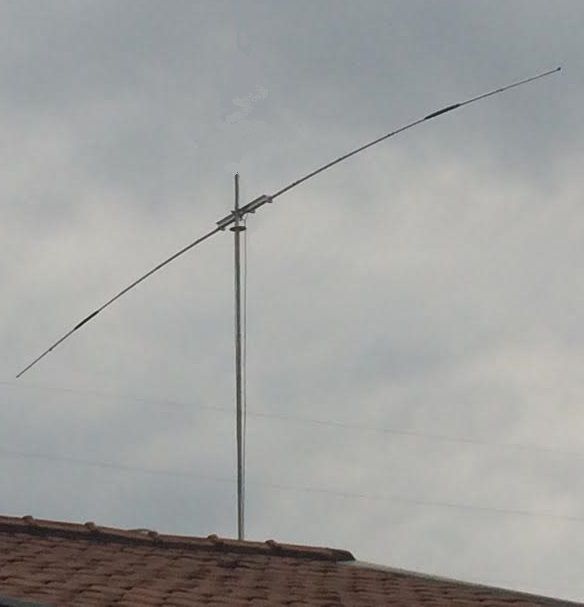

DXA1080

ROTATING SHORT RIGID DIPOLE ANTENNA FOR 10 AND 80M


Description:

The DXA1080 is a bidirectional antenna that covers the HF spectrum between 28 - 29.8 MHz and 3.5 – 4.5 MHZ (tunable). It can be used with the full legal power of 100W continuously or 300W PEP.

Kit K6 for 6m band is compatible.

Technical specifications
MODELDXA1080
BAND10 and 80m
GAIN2 DBI / 0 DBI
2:1 SWR BANDWIDTH+ 500khz (10m)/+20khz (80m)
MAX. INPUT PWR300 W PEP
> ELEMENT900 cm
TURNING RADIUS450 cm
MAST DIAMETER< 50MM
WIND-LOAD AREA0,19 m2
WEIGHT3,4 Kg
Downloads
DXA1080 ENG.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
