DXA1240

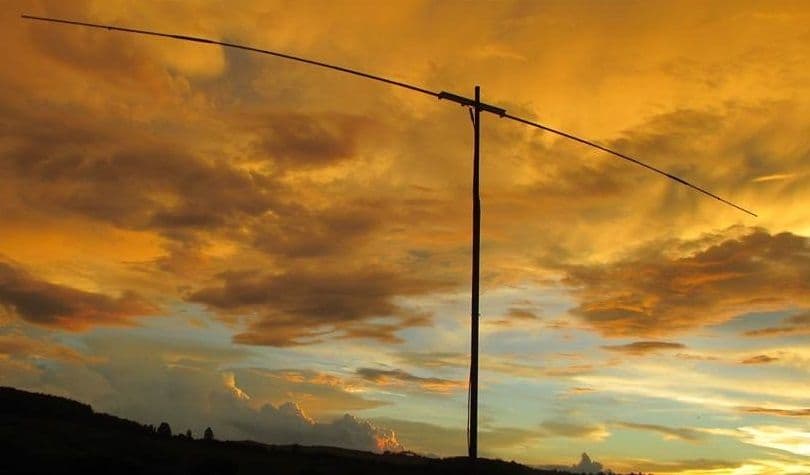

ROTATING SHORT RIGID DIPOLE ANTENNA FOR 12 AND 40M
Technical specifications | |
---|---|
MODEL | DXA1240 |
BAND | 12 and 40m |
GAIN | 2 DBI / 0 DBI |
2:1 SWR BANDWIDTH | + 500khz (12m)/+70khz (40m) |
MAX. INPUT PWR | 300 W PEP |
> ELEMENT | 900 cm |
TURNING RADIUS | 450 cm |
MAST DIAMETER | < 50mm |
WIND-LOAD AREA | 0,10 m2 |
WEIGHT | 3,6 Kg |
Downloads | |
---|---|
DXA1240 ENG.pdf | Download |
Warranty
Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.
Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
