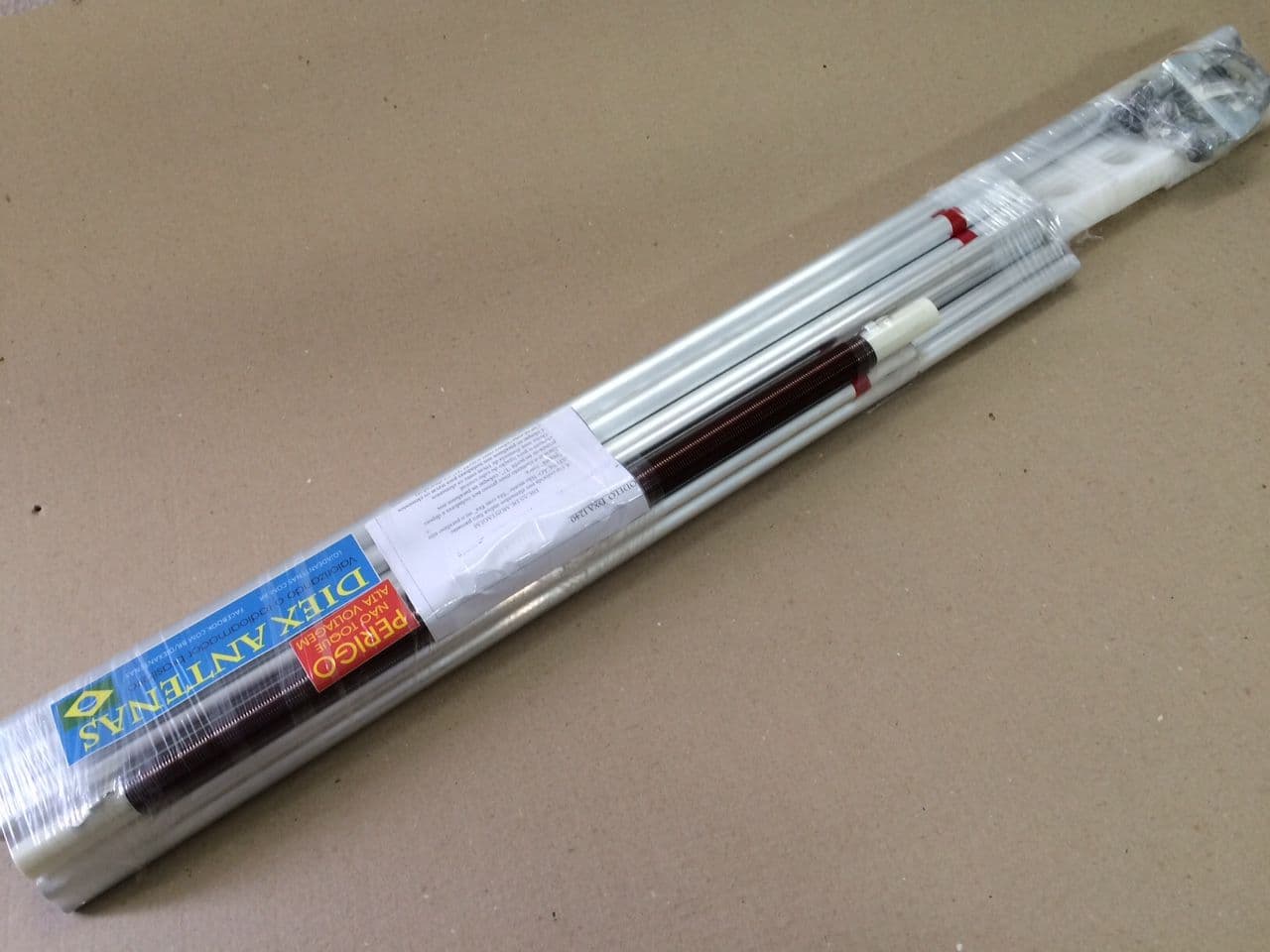

DXA1540

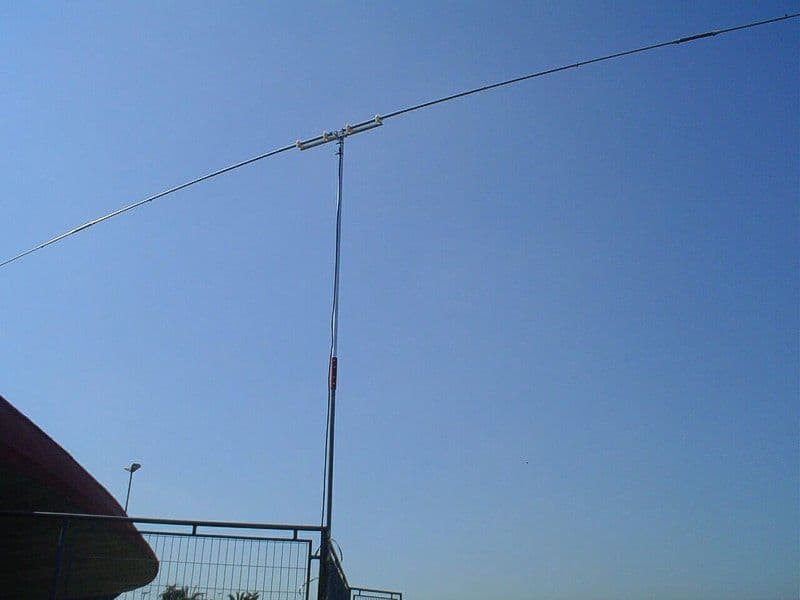

ROTATING SHORT RIGID DIPOLE ANTENNA FOR 15 AND 40M


Description:

The DXA1540 is a bidirectional antenna that covers the HF spectrum between 21.0 - 21.5 MHz and 7 – 7.5 MHZ (tunable). It can be used with the full legal power of 100W continuously or 300W PEP.

Kit K6 for 6m band is compatible.

Technical specifications
MODELDXA1540
BAND15 and 40m
GAIN2 DBI / 0 DBI
2:1 SWR BANDWIDTH+ 500khz (15m)/+70khz (40m)
MAX. INPUT PWR300 W PEP
> ELEMENT1020 cm
TURNING RADIUS510 cm
MAST DIAMETER< 50mm
WIND-LOAD AREA0,22 m2
WEIGHT4 Kg
Downloads
DXA1540 ENG.pdfDownload

Warranty

Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.

Products that undergo any adaptation or alteration or repairs by unauthorized service automatically void the warranty.
